How to Use Contour Lines to Evaluate Property Slope

When analyzing land inside Land Portal, understanding the terrain is one of the most important parts of evaluating a property. Not all land is flat and buildable, and that’s where contour lines come in.

Contour lines help you quickly visualize the slope and elevation of a property directly on the map so you can make smarter buying decisions before ever visiting the land.

In this article, we’ll break down what contour lines are, how to read them, and how to turn them on inside Land Portal.

Understanding Contour Lines

Contour lines represent elevation, or how high the land is above sea level.

Each line connects points of equal elevation across the property.

Here’s how to read them:

• Lines that are far apart indicate flatter land. This usually means the property is more usable and easier to build on.
• Lines that are close together indicate steep terrain. The closer the lines, the steeper the slope.
• The numbers on the lines show elevation in feet. For example, 960 ft, 980 ft, or 1300 ft.
• When elevation changes quickly over a short distance, that’s a sign of hills or uneven ground.

Contour lines give you a fast, visual way to understand the terrain without needing a survey, helping you avoid properties that may look good on paper but have major usability issues.

Step by Step Walkthrough

1. Login to Land Portal.

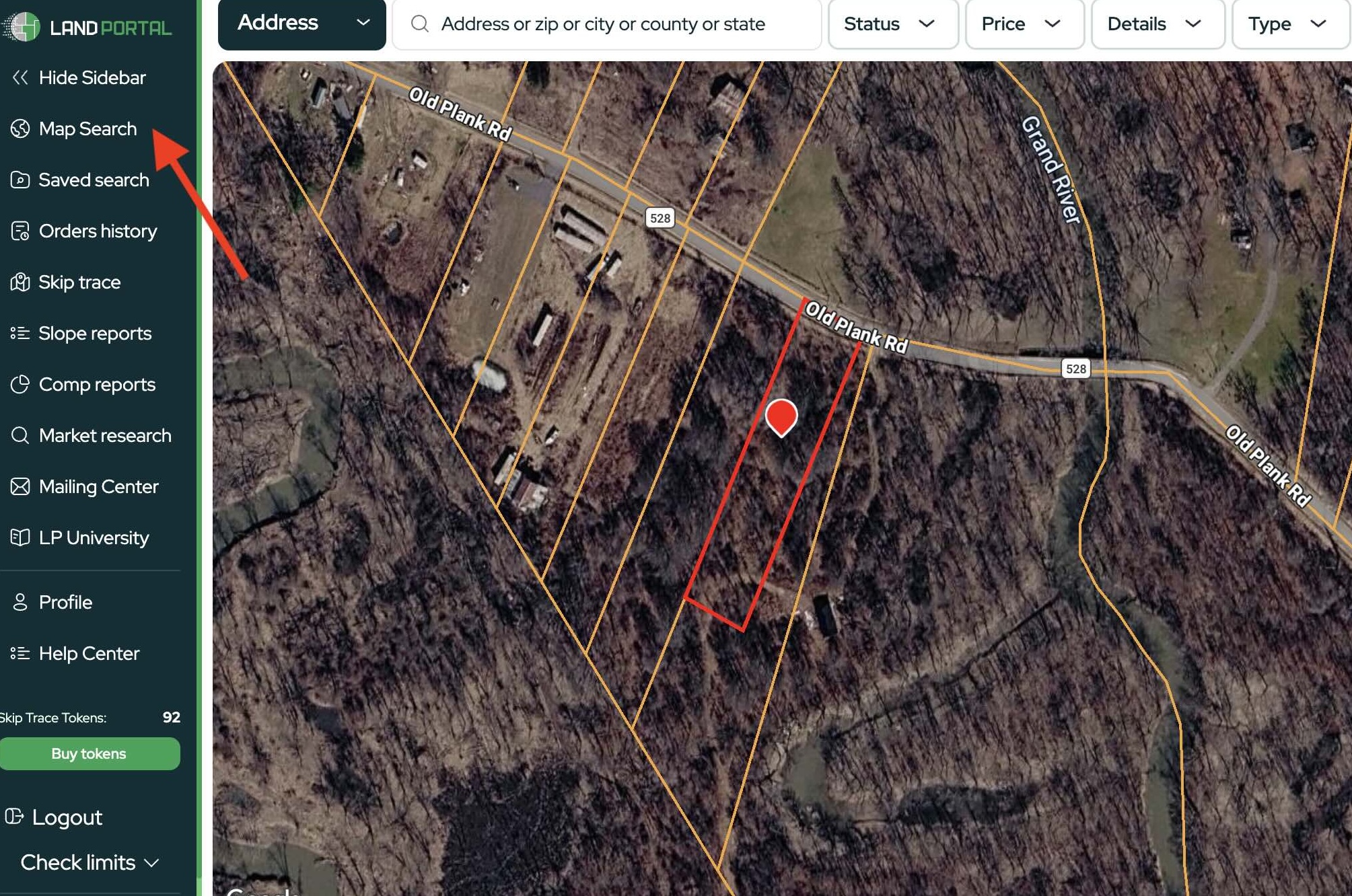

2. Use Map Search or zoom into a specific property or county you want to analyze.

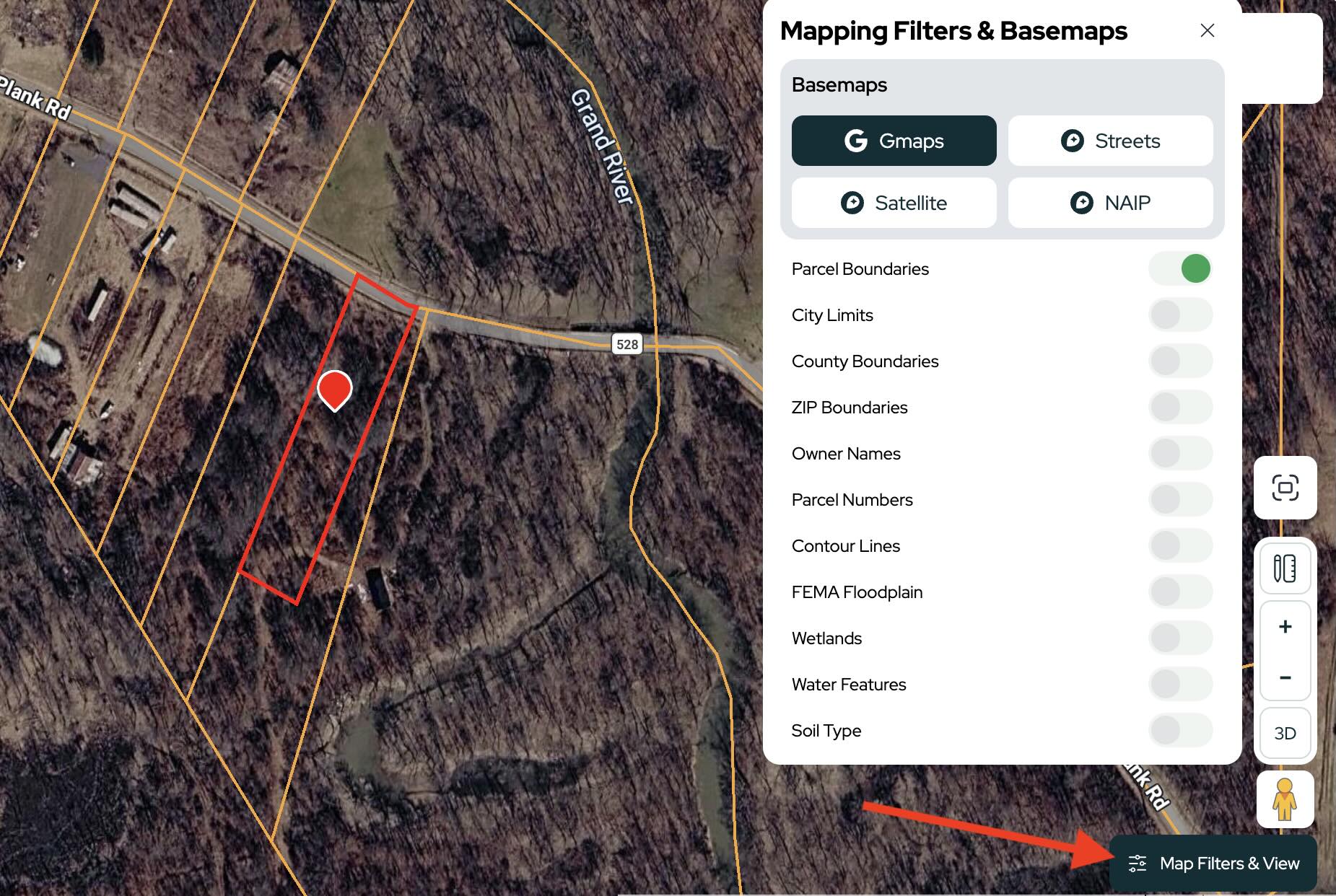

3. Click the Map Filters & View button in the bottom right corner of the map.

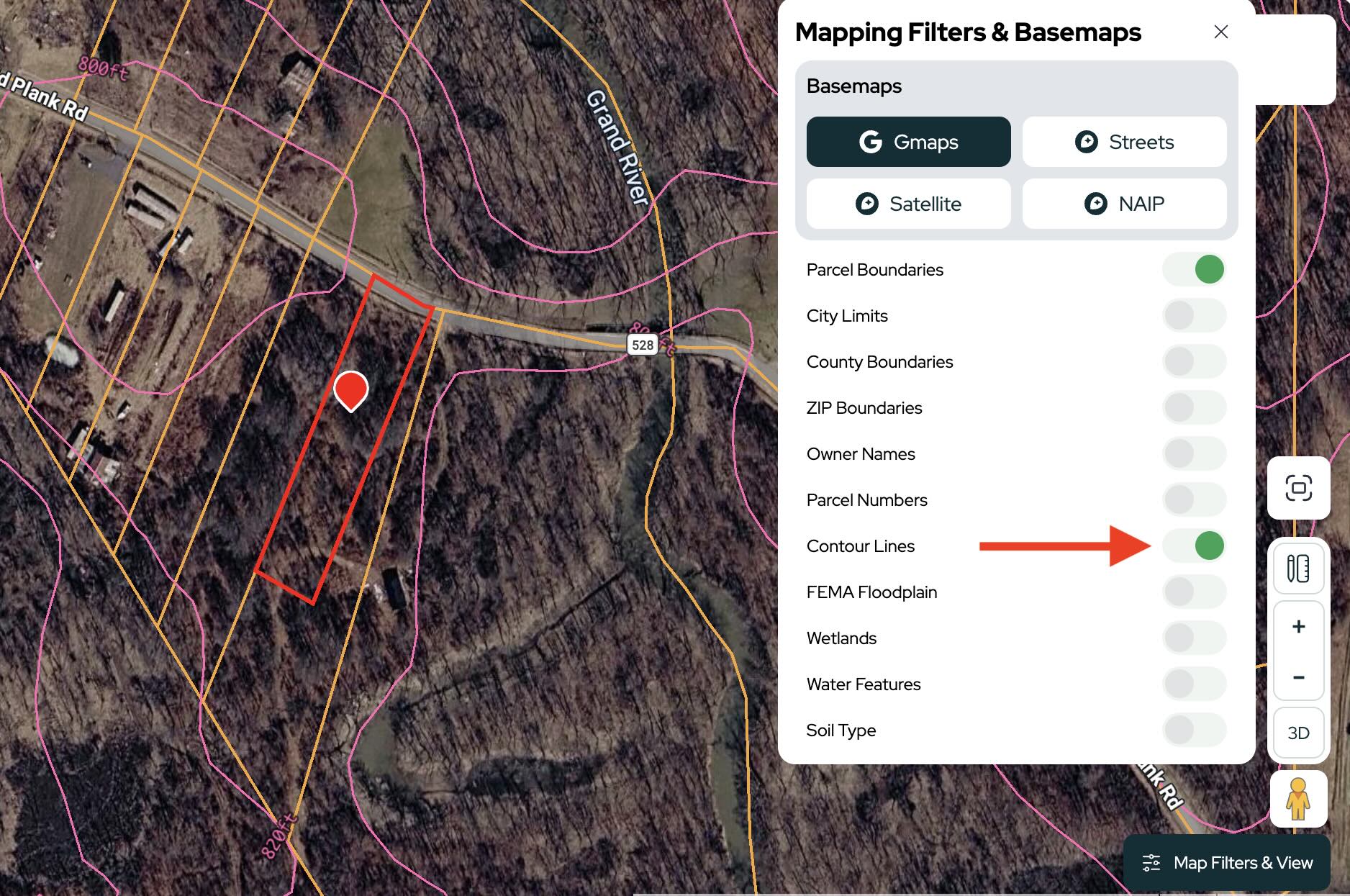

4. Toggle on Contour Lines.

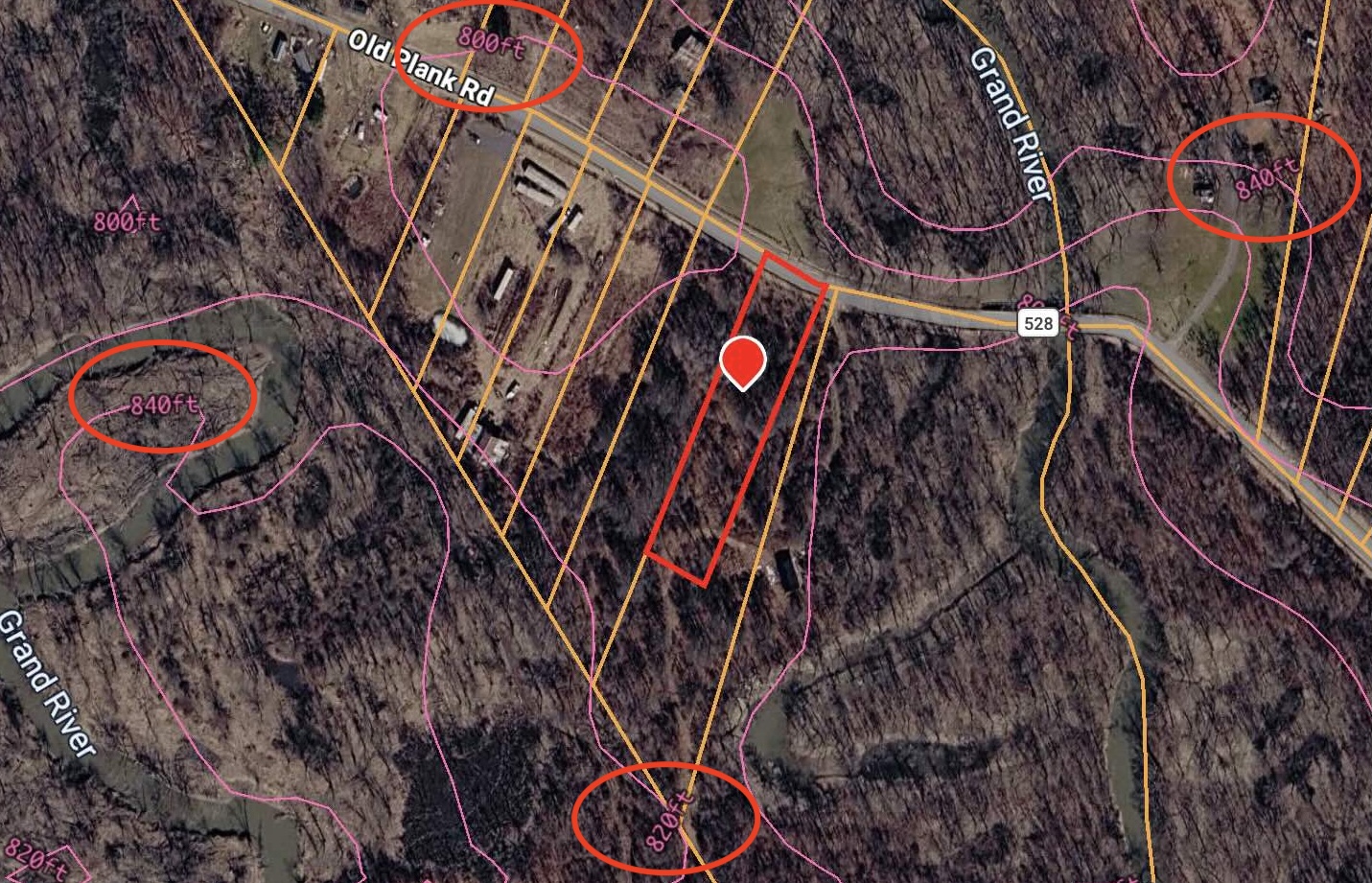

The contour lines will appear on the map, showing elevation, with line spacing indicating how steep or flat the land is.

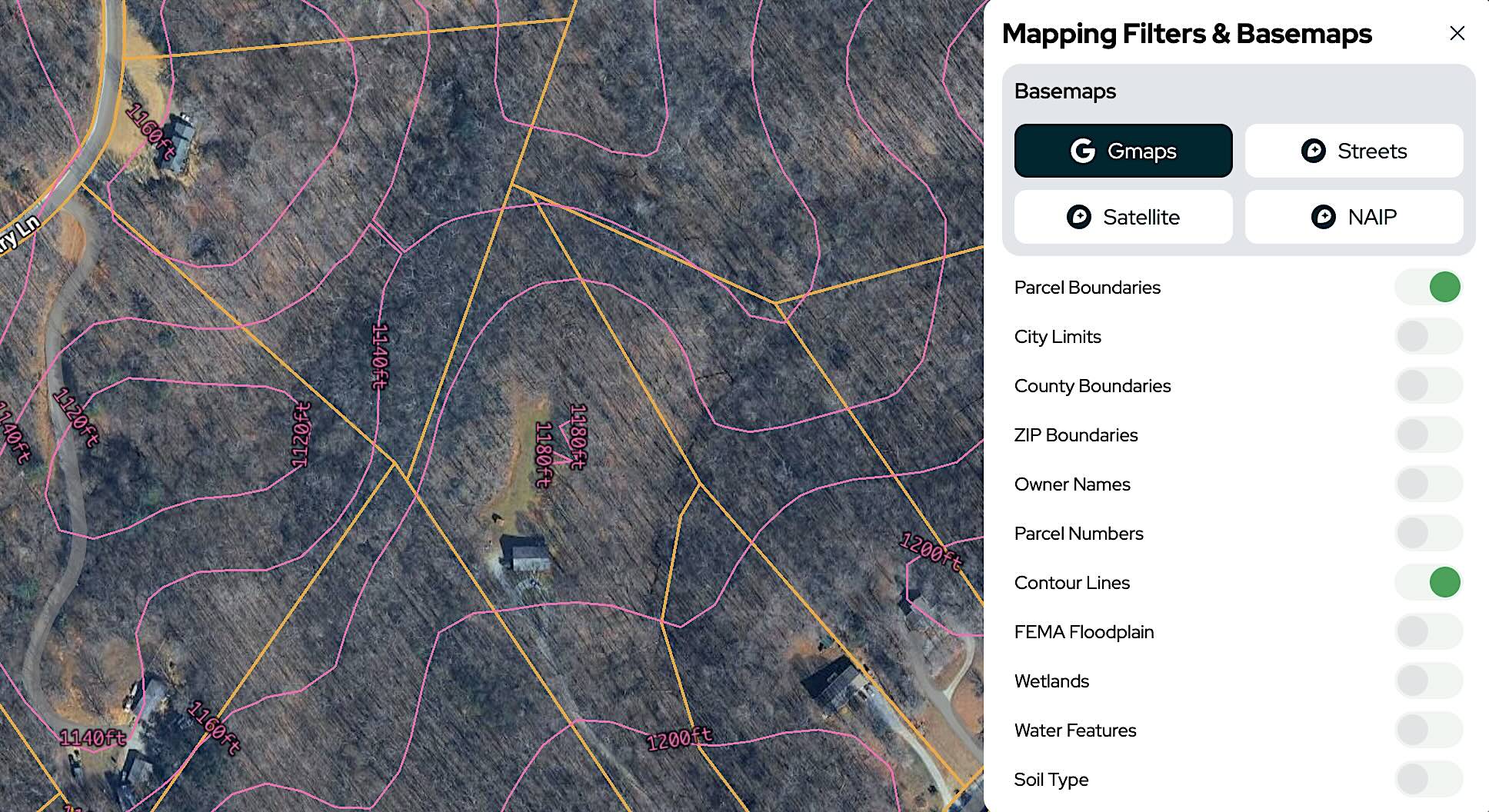

This has a slight slope, but the contour lines are spaced far enough apart to show the land is relatively gentle and likely usable.

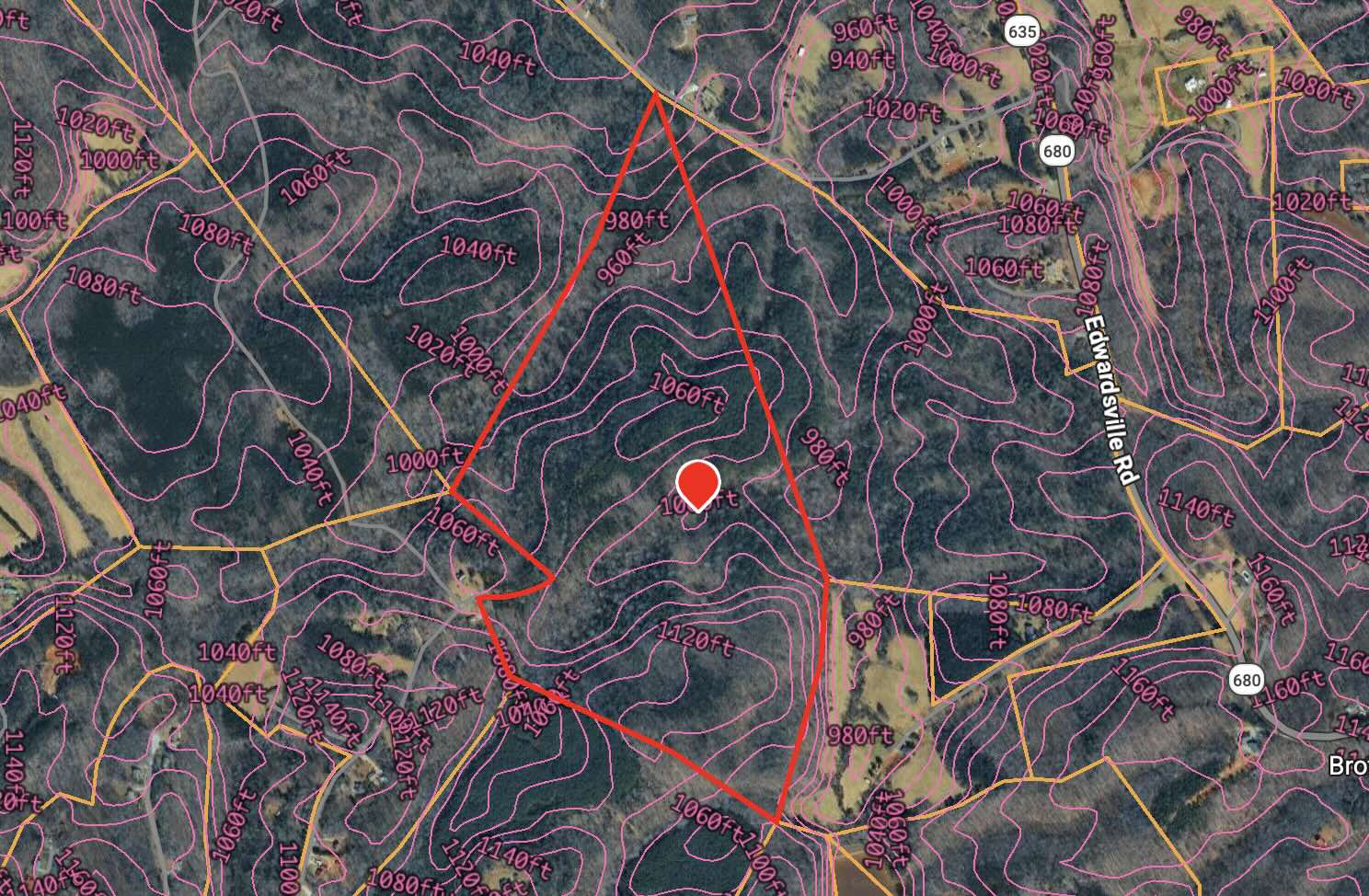

The property below has tightly spaced contour lines, showing steep slopes and major elevation changes. Compared to flatter areas, this type of terrain is more difficult to build on and requires more careful evaluation.

Using contour lines is a key part of evaluating land before you buy it. It helps you identify buildable areas, avoid steep or unusable terrain, and make more informed investment decisions.

If you’re serious about land investing, log in to Land Portal now and start using tools like the contour lines in your slope analysis to find and evaluate better deals faster.
